DC To AC Lead Acid Storage Battery 3 Phase Inverter Off Grid Pure Sine Wave

DC To AC Lead Acid Storage Battery 3 Phase Inverter Off Grid Pure Sine Wave
DC To AC Lead Acid Storage Battery 3 Phase Inverter Off Grid Pure Sine Wave DC To AC Lead Acid Storage Battery 3 Phase Inverter Off Grid Pure Sine Wave

Large Image :  DC To AC Lead Acid Storage Battery 3 Phase Inverter Off Grid Pure Sine Wave

Product Details:
Place of Origin: Guang dong
Brand Name: HG
Certification: CE, EMC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Place Of Origin: China Brand Name: JNGE POWER
Certification: CE ROHS Model Number: JN-WD1KW
Rated Voltage: 384v Application: Off-Grid Solar System
High Light:

lead acid car battery

,

battery charge controller

DC To AC 3 Phase Inverter Off Grid Pure Sine Wave



Full power three phases pure sine wave inverter used for off grid wind and solar system high quality inverter with CE ROSH certification can used as UPS inverter for industry.

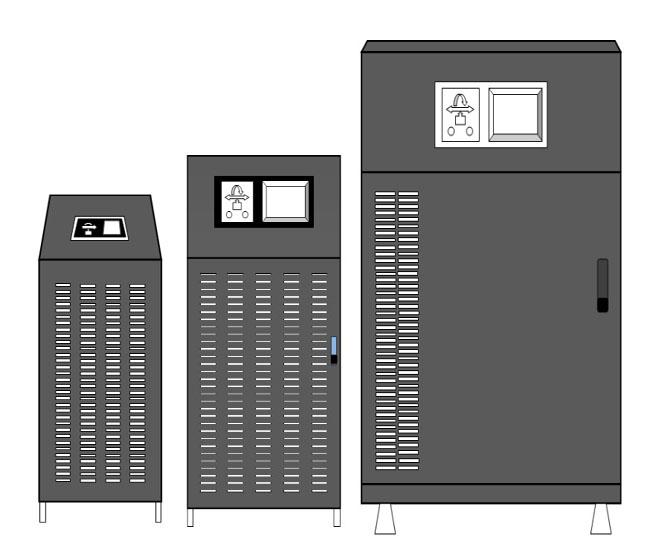

DC To AC Lead Acid Storage Battery 3 Phase Inverter Off Grid Pure Sine Wave 0

Features:
1.Three-phase frequency inverters are highly integrated digital technology to improve MTBF and reliability, DSP high-speed microprocessor control ensure more stable and reliable operation of equipment.
2.Strong information collection , signal processing ,detection and improve the protection system
3.One touch screen make the more easy setting then normal LCD.
4.Real-time clock and a memory, can record 256 event records and other setting information.

Specification:



Mode CPN08 CPN10 CPN15 CPN25 CPN30 CPN40 CPN50 CPN65 CPN80 CPN100 CPN120 CPN160
Rated power 8kw 10kw 15kw 25kw 30kw 40kw 50kw 65kw 80kw 100kw 120kw 160kw
Battery Voltage 384VDC
Phase Three-phase+N+G
Nominal voltage 380VAC±1%(Steady state load),380VAC±3%(Load fluctuation)
Input Frequency rage 50Hz±0.1Hz
Current peak ratio 3:1 MAX
Output waveform Pure sine wave
Total harmonic distortion Linear load < 3%; nonlinear load < 5%
Transient load voltage transients (from 0 to 100%) <±5%
Instant recovery time <10ms
Balance load voltage <±1%;<±5%(Unbalanced load voltage)
Overload capacity 100%~110%:30s;110%~130%:10s;>130%:1s
Inverter efficiency >89%
communication interface RS232,(485,RemoteControl,Options)
Operating temperature 0~40℃

Relative humidity

(non condensing)

30%~90%

Operating altitude

(maximum)

<1000Meters(every increased 1000Meters decrease power1%,highest5000Meters)
cooling method Forced air cooling
NoisedB(Depending on load and temperature)Distance to machine1M ≤58dB
* the above data for reference, if there is a change in kind prevail.



Product Advantages:



1. 12V 24V 48V system voltage auto identify.

2. MPPT charging efficiency more than 99.5%.

3. Fanless design with no nosie and free maintainless

4. With RS485 communication interface,more intelligent.

5. Support data storage, storage time can be up to 10 years.

6. Synchronous rectification technology.

7. Dual peaks and multi-peak tracking technology.

8.Japan imported power kits with better performance and more durable.

9. Common cathode circuit design makes the system more stable and reliable.

10. Support for parallel conenction, 99 sets max.

11.Super heat sink and fanless design with no nosie and free maintenance-free.



Product Parameters:



Parameters Name The parameter values (and adjustable range) Default values
Current 10A 20A 30A 40A
System Voltage 12V,24V,48V
Photovoltaic max input voltage

20V~100V(12V system Voltage)

40V~150V(suggest lower than 145V)(24Vsystem Voltage)

80V~150V(suggest lower than 145V)(48Vsystem Voltage)


Rated working current 10A 20A 30A 40A
Photovoltaic max input power

120W/12V

240W/24V

480W/48V

240W/12V

480W/24V

960W/48V

360W/12V

720W/24V

1440W/48V

480W/12V

960W/24V

1920W/48V


Output Rated Current 10A 15A 20A 20A
MPPT efficiency ﹥99.5%

Conversion

efficiency

﹥96%
Over voltage (over charge) 16~17V,×nV 16V,×nV
Over voltage recovery 15~15.5V, ×nV 15V,×nV
Charging limit voltage 15.5~16V, ×nV 15.5V,×nV
Equalizing charge voltage 15~15.5V, ×nV 15.2V,×nV
Boost charge voltage 14~15V, ×nV 14.4V,×nV
Boost charge recovery 12.3~13.5V,×nV 13.2V,×nV
voltage 13.2~14.0,×nV 13.8V,×nV
Over discharge voltage 9.8~11.8V,×nV 10.8V,×nV
Over discharge recovery 12.0~13.0V,×nV 12.6V,×nV
Equalizing charge time 1/2/3 hour 1H
Boost charge time 1/2/3 hour 1H
Device address 1~99 6
Light control OPEN voltage 5~11V 5
Light control CLOSE voltage 5~11V 6

Light control

time delay

10min
Temperature compensation 0~4 4
Over temperature protection When the temperature reaches 75 ℃ charging current is limited to half of the rated current, When the temperature reaches 90 ℃ charging and load are shut off
Working temperature -20℃~50℃
Storage temperature -40℃~80℃
Humidity 10% ~ 90% Non-condensate
Weight 2.15kg
Size 185*193*80mm(20~30A)





Lead acid  12v 65A vrla ups inverter battery







DC To AC Lead Acid Storage Battery 3 Phase Inverter Off Grid Pure Sine Wave 2

DC To AC Lead Acid Storage Battery 3 Phase Inverter Off Grid Pure Sine Wave 3

DC To AC Lead Acid Storage Battery 3 Phase Inverter Off Grid Pure Sine Wave 4

DC To AC Lead Acid Storage Battery 3 Phase Inverter Off Grid Pure Sine Wave 5

DC To AC Lead Acid Storage Battery 3 Phase Inverter Off Grid Pure Sine Wave 6

DC To AC Lead Acid Storage Battery 3 Phase Inverter Off Grid Pure Sine Wave 7

DC To AC Lead Acid Storage Battery 3 Phase Inverter Off Grid Pure Sine Wave 8

DC To AC Lead Acid Storage Battery 3 Phase Inverter Off Grid Pure Sine Wave 9
