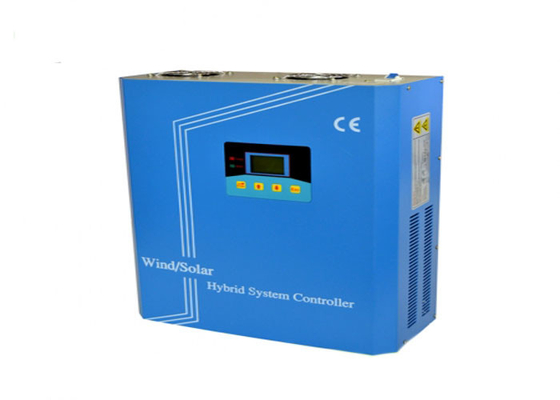

1 - 5KW Lead Acid Battery High Power Wind Solar Hybrid Controller With Unloading Box

1 - 5KW Lead Acid Battery High Power Wind Solar Hybrid Controller With Unloading Box
1 - 5KW Lead Acid Battery High Power Wind Solar Hybrid Controller With Unloading Box 1 - 5KW Lead Acid Battery High Power Wind Solar Hybrid Controller With Unloading Box

Large Image :  1 - 5KW Lead Acid Battery High Power Wind Solar Hybrid Controller With Unloading Box

Product Details:
Place of Origin: Guang dong
Brand Name: HG
Certification: CE, EMC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Place Of Origin: China Brand Name: JNGE POWER
Certification: CE ROHS Warranty: 3 Years
Net Weight: 13kg Model Number: JN-WD1KW
High Light:

lead acid storage battery

,

lead acid car battery

1KW 2KW 3KW 4KW 5KW High Power Wind Solar Hybrid Controller(With Unloading Box And PWM Charge)24V/48V/96V



High power Wind solar hybrid charge controller 12v/24v/48v/96v, wind turbine 1KW -5KW ,solar panel power 300w-1kw



The wind/solar hybrid controller is the intelligent power with integration of controlling . It can store electrical power generated by the wind turbine and solar panels into the storage battery.



The controller not only has perfect appearance, LCD display and convenient operation, but also has over-charge protection, over-voltage protection, over-hot protection, under-voltage protection, pole-confusion protection for storage battery and automatic dump-load function. The controller is adopted the constant voltage charging mode-PWM, and it has high reliable and safe operation, high efficiency, long service life functions. What’s more, it adopts the American origin Micro-controller as a control core component with reliable. And the Power device, the use of the high quality German XYIS imported devices. Through a large number of practice has proved that the system safe, stable and reliable operation, long service life. High performance/cost ratio.



Product Advantages:

1. PWM uninstall: PWM (pulse width modulation) method for unloading, which can reach thousands of magnitude of unloading. So, in the normal unloading situation, to ensure battery voltage is always stable in floating charge pressure points, but only to release excess electricity into unloading on the load. Thus guarantees the best battery charging features, make full use of the electricity, and ensure the service life of the battery.

2. Many kinds of charging modes: adopts the PWM fast charging method.

The battery reverse connect protection function: the equipment is perfect the battery reverse connect protection function, such as the battery positive and negative polarity, the controller will ban the start, in order to avoid damage to the battery and equipment.



3. Short circuit protection function: controller internal using unidirectional power supply circuit, short circuit, or reverse connection of the controller will not be able to start.



4. Overheating protection function: in addition to the unloading resistance is equipped with a cooling fan, inside the other equipped with dedicated circuit cooling system, when the temperature reaches set point will start the forced air cooling system.



5. High stability: because the system has over voltage, under voltage, overload, overheating and short circuit, reverse connection, lightning protection, battery open circuit protection, PWM unload and perfect protection functions such as over-voltage automatic brake, so as to ensure the stability of the system.



6. Wind/solar charge control: simple structure, convenient maintenance.



7. Wind and photovoltaic (PV) separate control, wind adopts PWM method uninstall, photovoltaic unload by way of open circuit.



8. LCD + LED display parameters such as battery voltage, charge current,discharge current and so on



9. Digital intelligent control: The machine is adopted Microcomputer chip as its core component to ensures accurate control, which also makes the peripheral circuit structure simply. It has agile control way and control strategy with high function and reliability.



General Safety Information

  • Before installation, please read all the instructions in the manual and matters needing attention.
  • Inside the controller did not have maintenance or repair parts, users do not need disassembly and repair the controller itself.
  • Before the installation and adjustment of controller wiring be sure to disconnect the cell attachment and near the battery terminals of insurance or circuit breaker.
  • Suggestions on the outside of the controller installed appropriate fuse or circuit breaker.
  • Prevent water entering inside the controller.
  • After installation, check all wiring connections are tight, avoid heat accumulation due to the empty pick up and produce risk.
  •

Wind turbine power 1KW-3KW solar panel power 300W -3KW



Product Parameters:



Model No. JN-WD24 JN-WD48 JN-WD96 JN-WD120 JJN-WD240



Wind turbine power



1kw

1kw

2kw

3kw

5kw

2kw

3kw

5kw

10kw

3kw

5kw

10kw

3kw

5kw

10kw



Solar max power



300w

300w

600w

1000w

1500w

600w

1000w

1500w

3000w

1000w

1500w

3000w

1000w

1500w

3000w

Over-charge voltage 28.8v 57.6v 116v 144v 288v
Over-charge recovery voltage 26v 56v 110v 138v 264v
Method of control PWM
Free-load lost power ≤6mA
Voltage lost on charging ≤0.26V
Voltage lost on discharge ≤0.15V
Environment temperature -25℃ - +55℃
Shape Dimension 440mm×366mm×166mm
Dump-load Dimension 400mm×230mm×290mm
Net Weight 8KG
Cooling Way Cooling Fan



Product Advantages:



1. 12V 24V 48V system voltage auto identify.

2. MPPT charging efficiency more than 99.5%.

3. Fanless design with no nosie and free maintainless

4. With RS485 communication interface,more intelligent.

5. Support data storage, storage time can be up to 10 years.

6. Synchronous rectification technology.

7. Dual peaks and multi-peak tracking technology.

8.Japan imported power kits with better performance and more durable.

9. Common cathode circuit design makes the system more stable and reliable.

10. Support for parallel conenction, 99 sets max.

11.Super heat sink and fanless design with no nosie and free maintenance-free.



Product Parameters:



Parameters Name The parameter values (and adjustable range) Default values
Current 10A 20A 30A 40A
System Voltage 12V,24V,48V
Photovoltaic max input voltage

20V~100V(12V system Voltage)

40V~150V(suggest lower than 145V)(24Vsystem Voltage)

80V~150V(suggest lower than 145V)(48Vsystem Voltage)


Rated working current 10A 20A 30A 40A
Photovoltaic max input power

120W/12V

240W/24V

480W/48V

240W/12V

480W/24V

960W/48V

360W/12V

720W/24V

1440W/48V

480W/12V

960W/24V

1920W/48V


Output Rated Current 10A 15A 20A 20A
MPPT efficiency ﹥99.5%

Conversion

efficiency

﹥96%
Over voltage (over charge) 16~17V,×nV 16V,×nV
Over voltage recovery 15~15.5V, ×nV 15V,×nV
Charging limit voltage 15.5~16V, ×nV 15.5V,×nV
Equalizing charge voltage 15~15.5V, ×nV 15.2V,×nV
Boost charge voltage 14~15V, ×nV 14.4V,×nV
Boost charge recovery 12.3~13.5V,×nV 13.2V,×nV
voltage 13.2~14.0,×nV 13.8V,×nV
Over discharge voltage 9.8~11.8V,×nV 10.8V,×nV
Over discharge recovery 12.0~13.0V,×nV 12.6V,×nV
Equalizing charge time 1/2/3 hour 1H
Boost charge time 1/2/3 hour 1H
Device address 1~99 6
Light control OPEN voltage 5~11V 5
Light control CLOSE voltage 5~11V 6

Light control

time delay

10min
Temperature compensation 0~4 4
Over temperature protection When the temperature reaches 75 ℃ charging current is limited to half of the rated current, When the temperature reaches 90 ℃ charging and load are shut off
Working temperature -20℃~50℃
Storage temperature -40℃~80℃
Humidity 10% ~ 90% Non-condensate
Weight 2.15kg
Size 185*193*80mm(20~30A)





Lead acid  12v 65A vrla ups inverter battery
